CTC Lab is a specialized laboratory and a leading provider of services in the field of Technical cleanliness analysis and expert consultations, helping clients identify and eliminate microscopic contaminants that may negatively impact the functionality, reliability, and lifespan of products.

Thanks to advanced extraction methods using the latest technologies and innovative procedures in analysis, we provide precise, professional, and understandable outputs that help companies achieve the highest standards of quality, safety, and reliability in their production and processes.

Our testing and analysis procedures are monitored by international institutions through regular system certifications and laboratory audits by representatives of the IAQA association.

See more

News

LICENSED COURSE CLEANLINESS CERTIFICATION CENTER®

Technical cleanliness

Specific requirements for performing analyses according to the NEW VDA 19.1 STANDARD
More information about the training

CLEANLINESS TESTING

We perform a wide range of cleanliness inspections and analytical evaluations that ensure compliance with industrial standards and specific customer requirements.

  • Standard extraction and analytical methods according to VDA 19.1 and ISO 16232.

  • AIR EXTRACTION ACCORDING TO VDA 19.1, CHAPTER 6.5. WITH THE CLEANLINESS OF THE AIR MEDIUM AT ISO CLASS 1 LEVEL.

  • Rapid Cleanliness Tests: Contamination assessment using stamps.

  • Microscopic assessment of particles: Analysis of particle traps, stamp tests and analytical filters.

  • SEQUENTIAL ANALYZES OF TECHNICAL CLEANLINESS IN PROCESSES.

EXTRACTION AND ANALYSIS METHODS

We offer various extraction techniques suitable for a wide range of components and cleanliness control needs.

LIQUID EXTRACTION

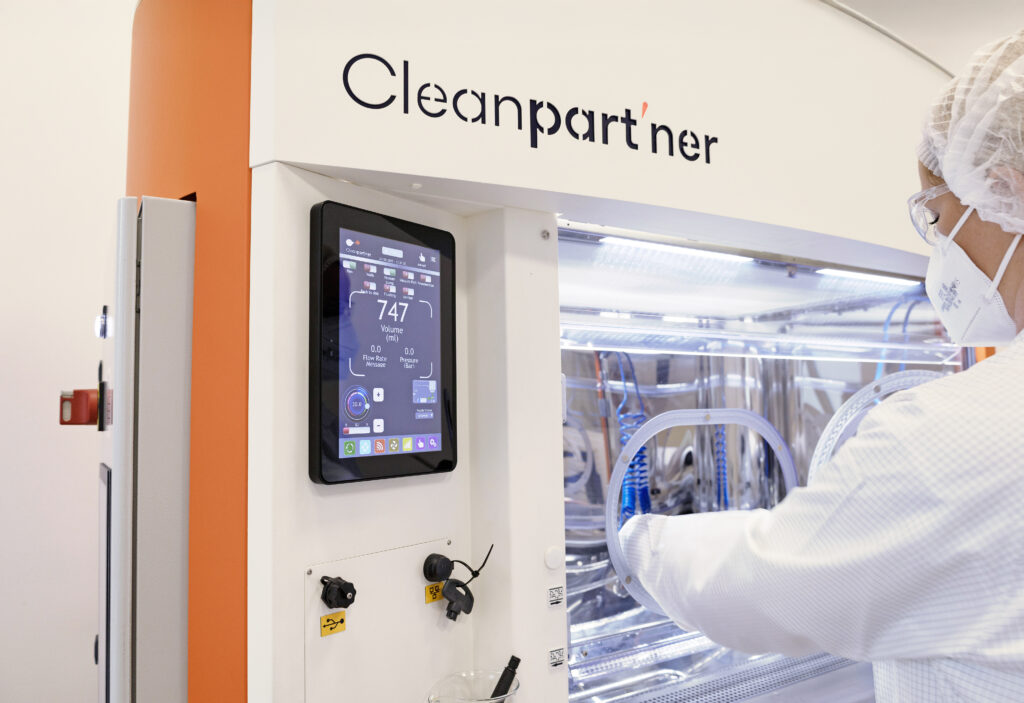

  • Standard solvent extraction.
  • Fully compliant with international norms and standards VDA 19.1 and ISO 16232.

DRY EXTRACTION BY AIR MEDIUM – BLOW-OFF

  • Non-destructive extraction of contamination from components using ionized air of ISO CLASS 1, with the possibility of returning the components to the production process.
  • Ideal solution for identifying sources of contamination during production processes.

DRY EXTRACTION – BY SUCTION

  • Non-destructive extraction of contamination from components by brush vacuuming, with the possibility of returning the components to the production process.
  • Ideal solution for identifying sources of contamination during production processes.

STANDARD ANALYSES

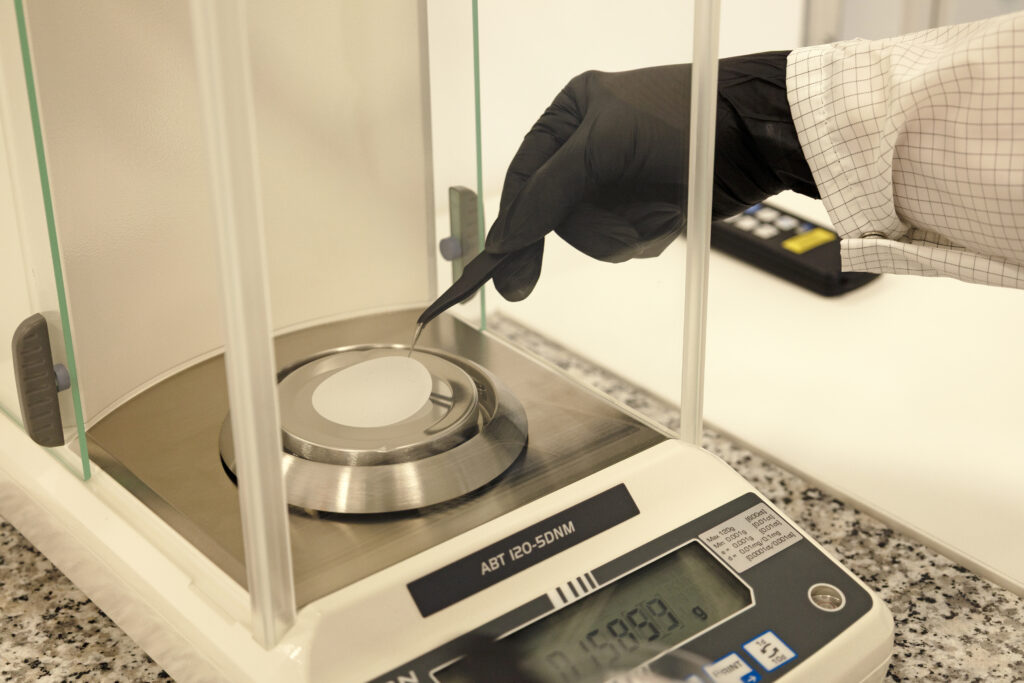

  • Gravimetry – quantitative method for measuring the mass of contamination after extraction.

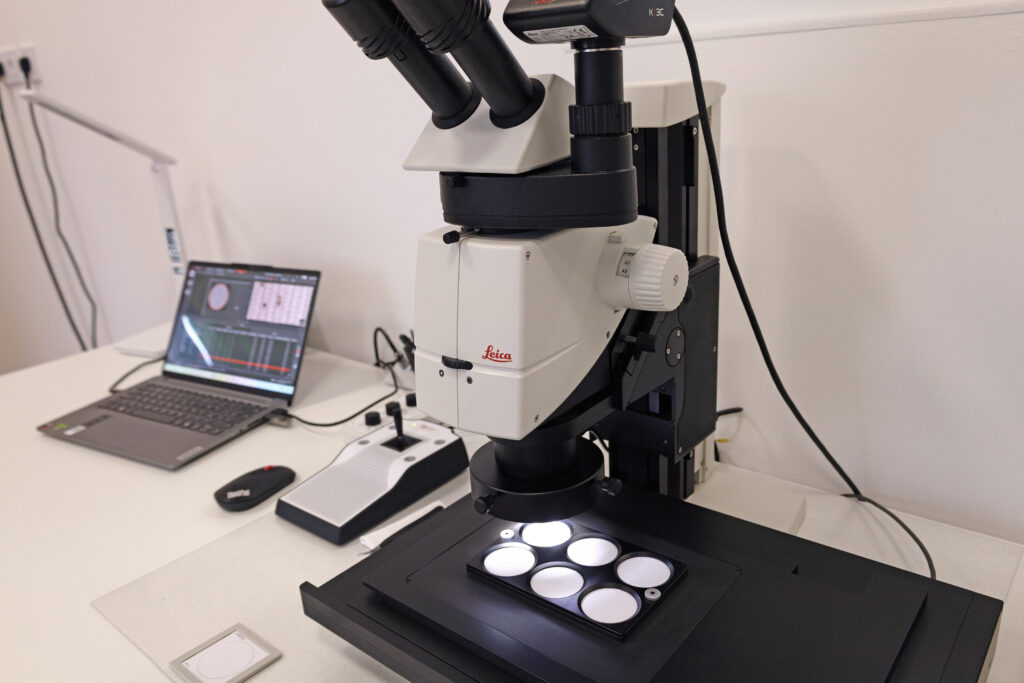

  • Optical light microscopy – detailed visual evaluation of particles using an industrial polarized microscope.
  • RFU – spectrophotometry.

ADDITIONAL ANALYSES

  • In cooperation with leading laboratories in the EU, we provide SEM/EDX and LIBS analyses – spectral analysis of the material composition of particles = precise identification of contamination sources.
  • Optical photometry in cooperation with our partner ZEISS.

SEDIMENTATION ANALYSES

  • Instant sedimentation analysis using stamp tests in accordance with ISO 19.2.
  • Time-lapse sedimentation analysis using traps in accordance with ISO 19.2.

SUPPORT

In cooperation with the inspection body Cleanliness Certification Center, we provide support in the field of Technical Cleanliness:

  • Expert consultations and advisory services.
  • Training delivery and preparation of employees in the field of extraction tests and analyses.
  • Execution of contamination analyses in processes.
  • Process optimization.
  • Condition assessment and specific recommendations for improving production and logistics flows.
  • Identification and elimination of contamination sources.
  • Implementation of preventive measures for Technical Cleanliness.
  • Support in design during construction or reconstruction of cleanrooms.
  • Consulting in the development and upgrading of cleanrooms and laboratories.
  • Implementation of best practices for contamination control.
  • Verification of existing cleanrooms in accordance with international ISO standards.
  • Performance of hall monitoring, process monitoring, and air cleanliness measurements.
  • Education and training in Technical Cleanliness for all employee levels.
  • Professional courses and conferences focused on cleanroom technology and Technical Cleanliness management.
  • Practical workshops on correct inspection procedures.

Download​:

Download catalog

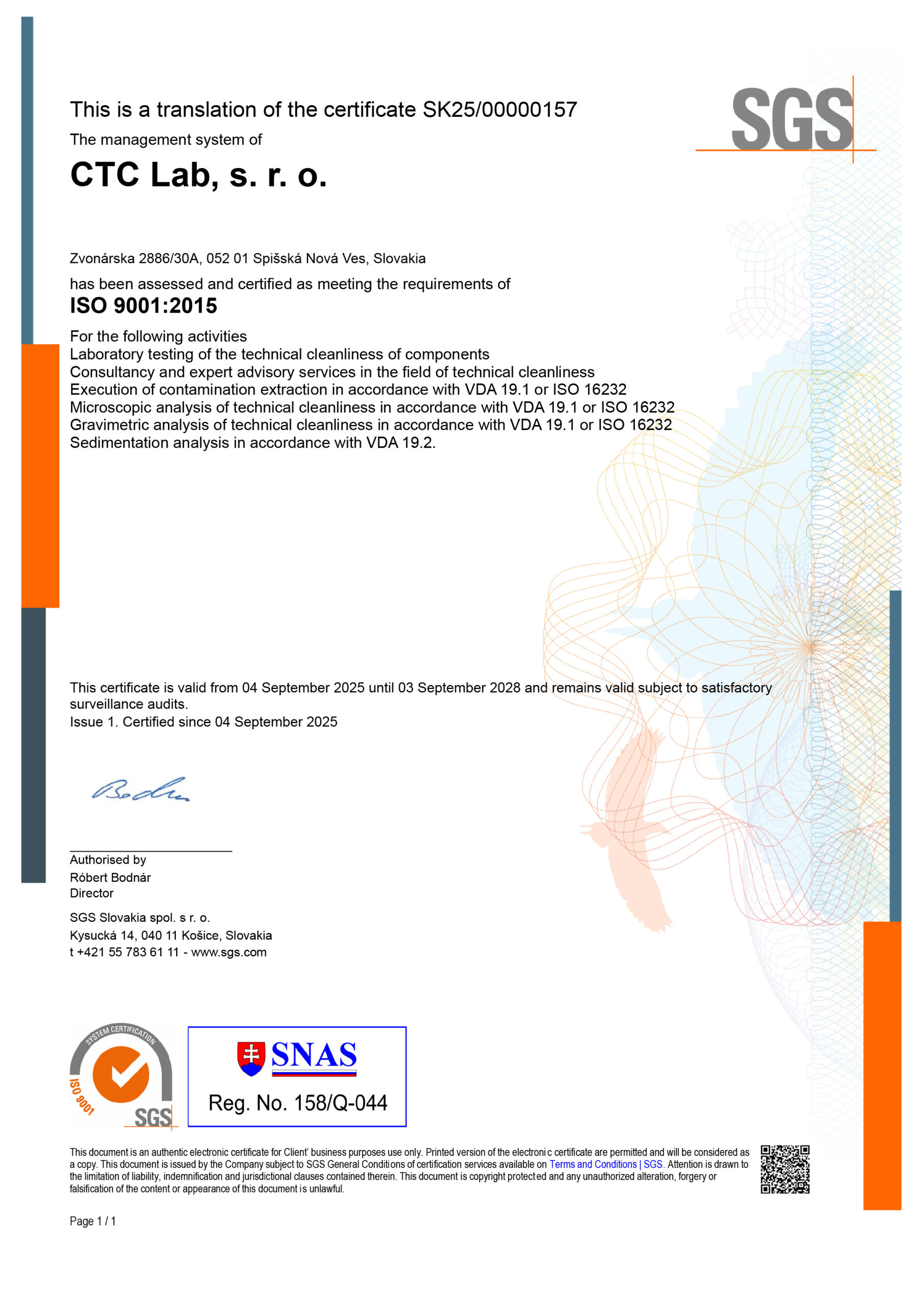

Certificates
